Hurth SRS 400
- Gear diameter range: 64–320 mm
- Module range: 1–12
- Maximum width of the shaving cutter: 40 mm
- Number of teeth: 13–240
- Pitch circle diameter range: 73–320 mm
- Workpiece slide speed: 15/20/30/40 teeth per minute
- Grinding spindle speed: 690 RPM
- Grinding slide diameter: 762 mm
- Pressure angle rotation range: 5–21 degrees
- Helix angle rotation range: ±35 degrees
- Vertical adjustment of the grinding slide: 240 mm
Description

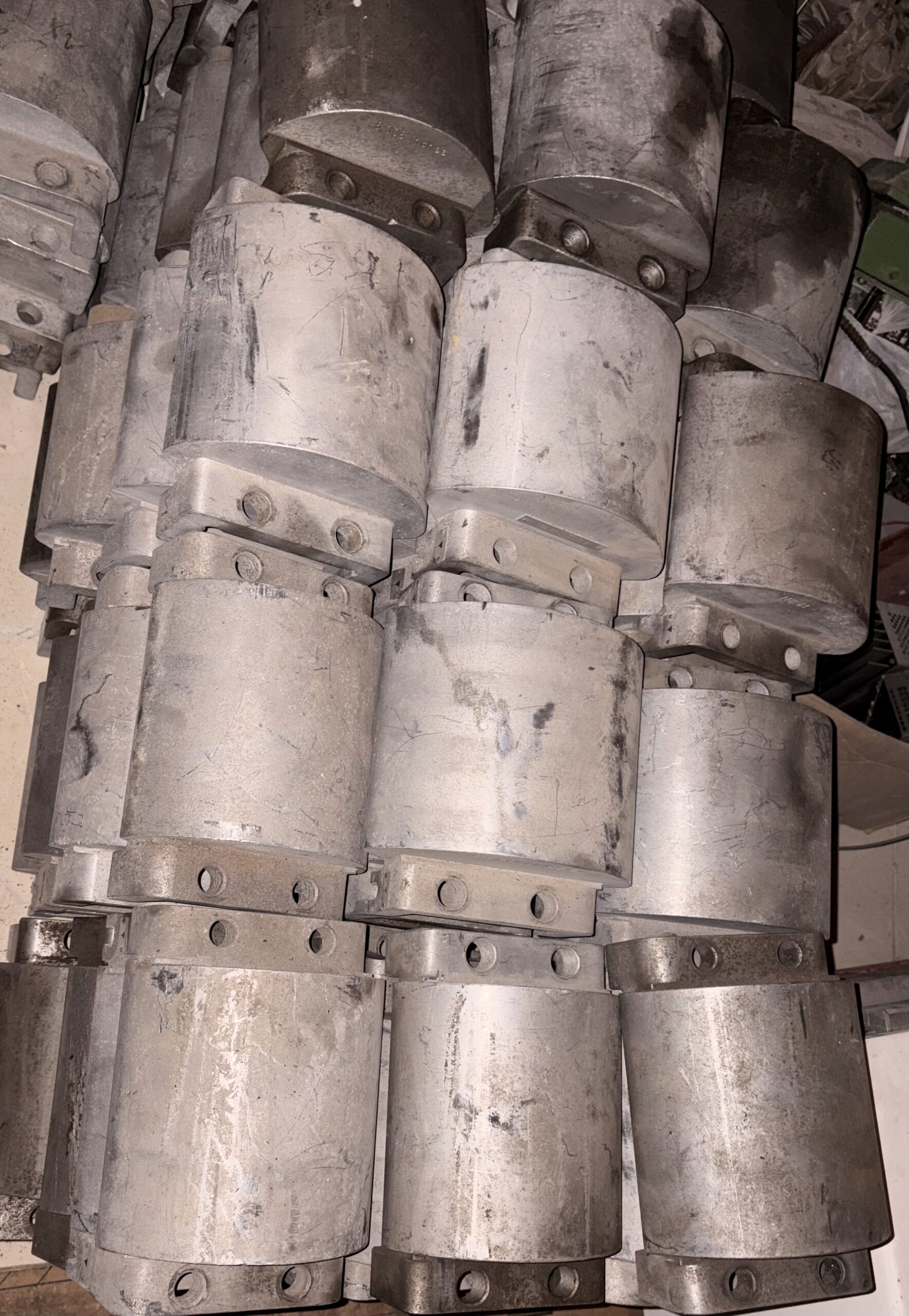

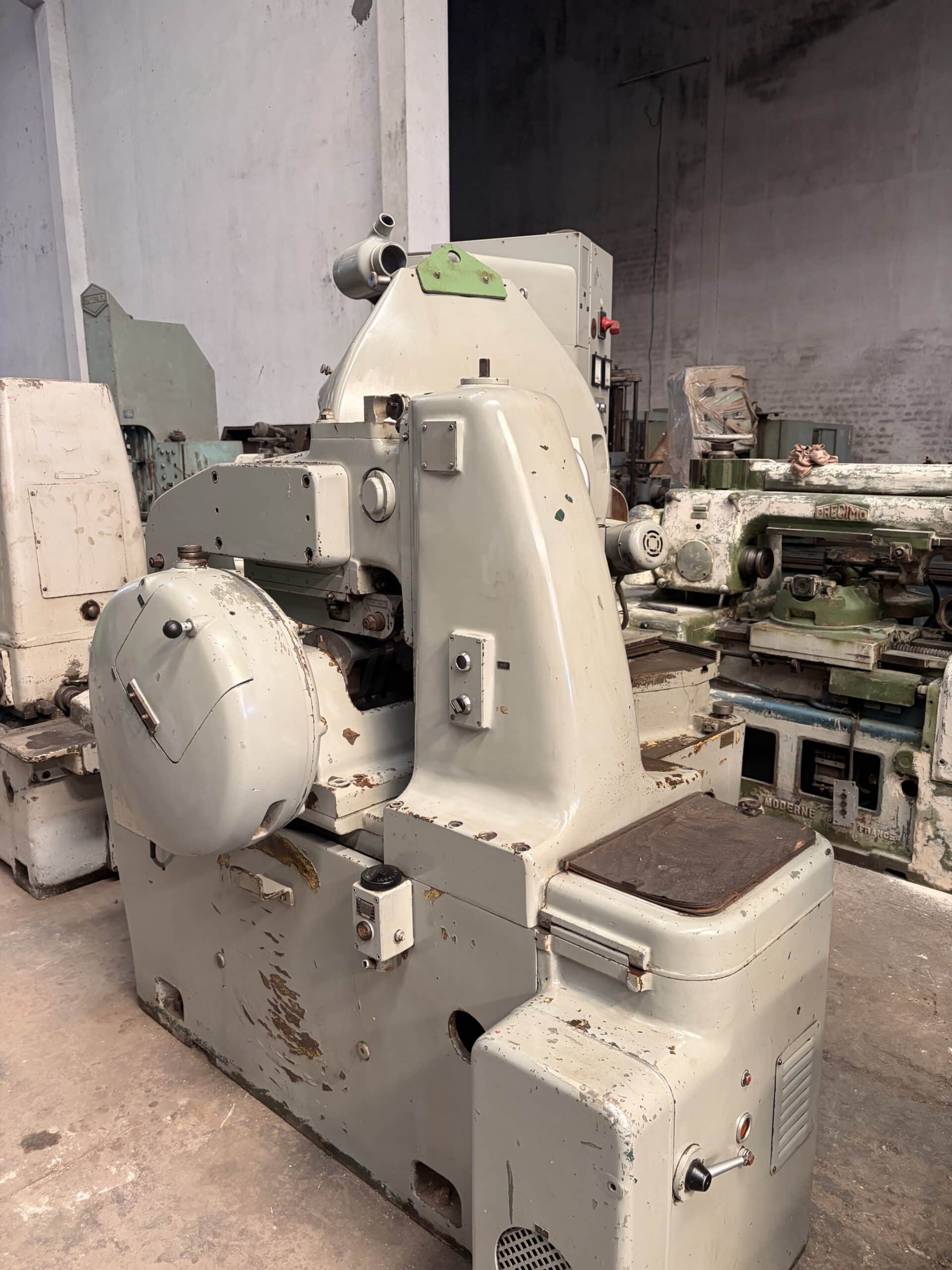

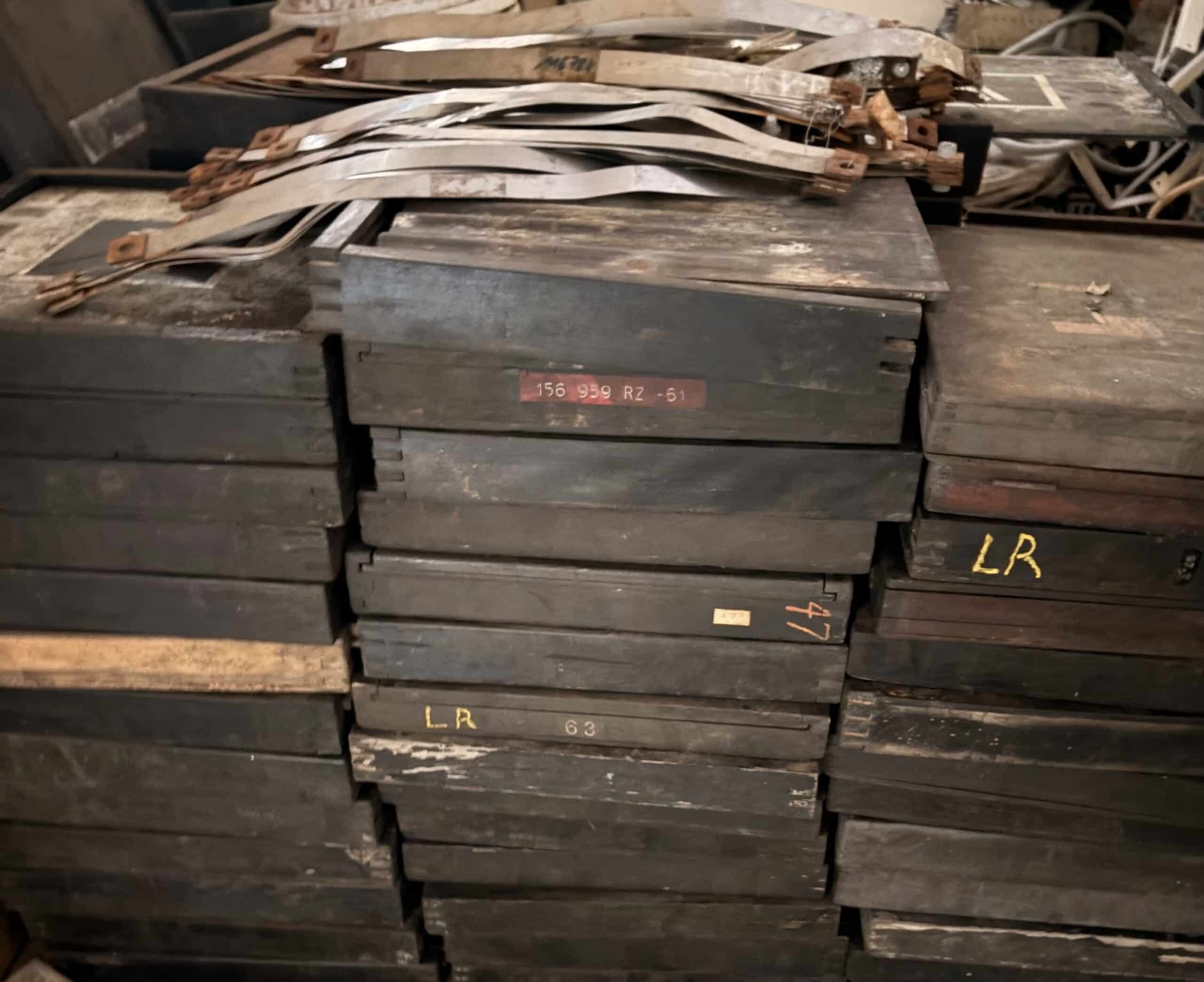

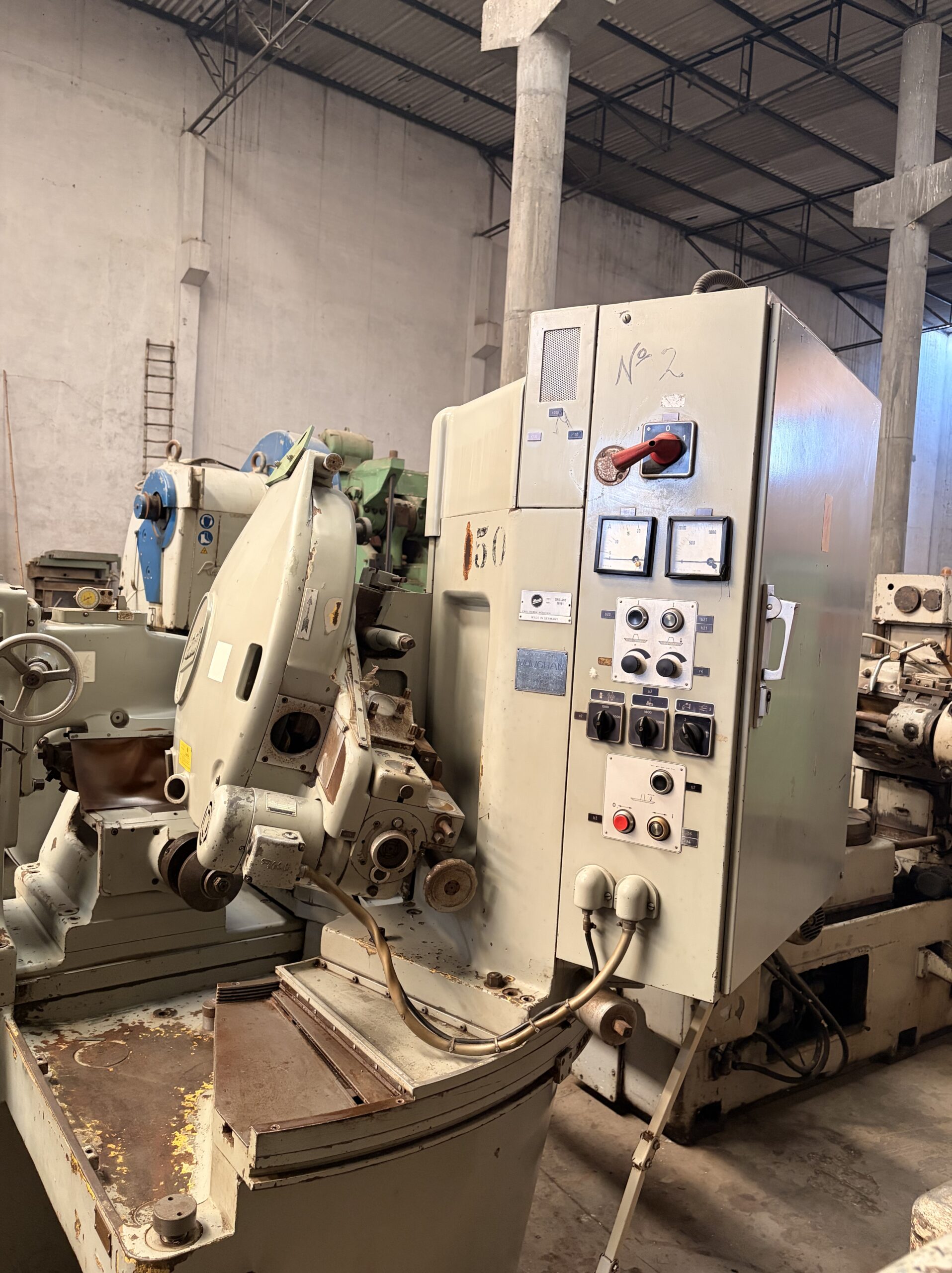

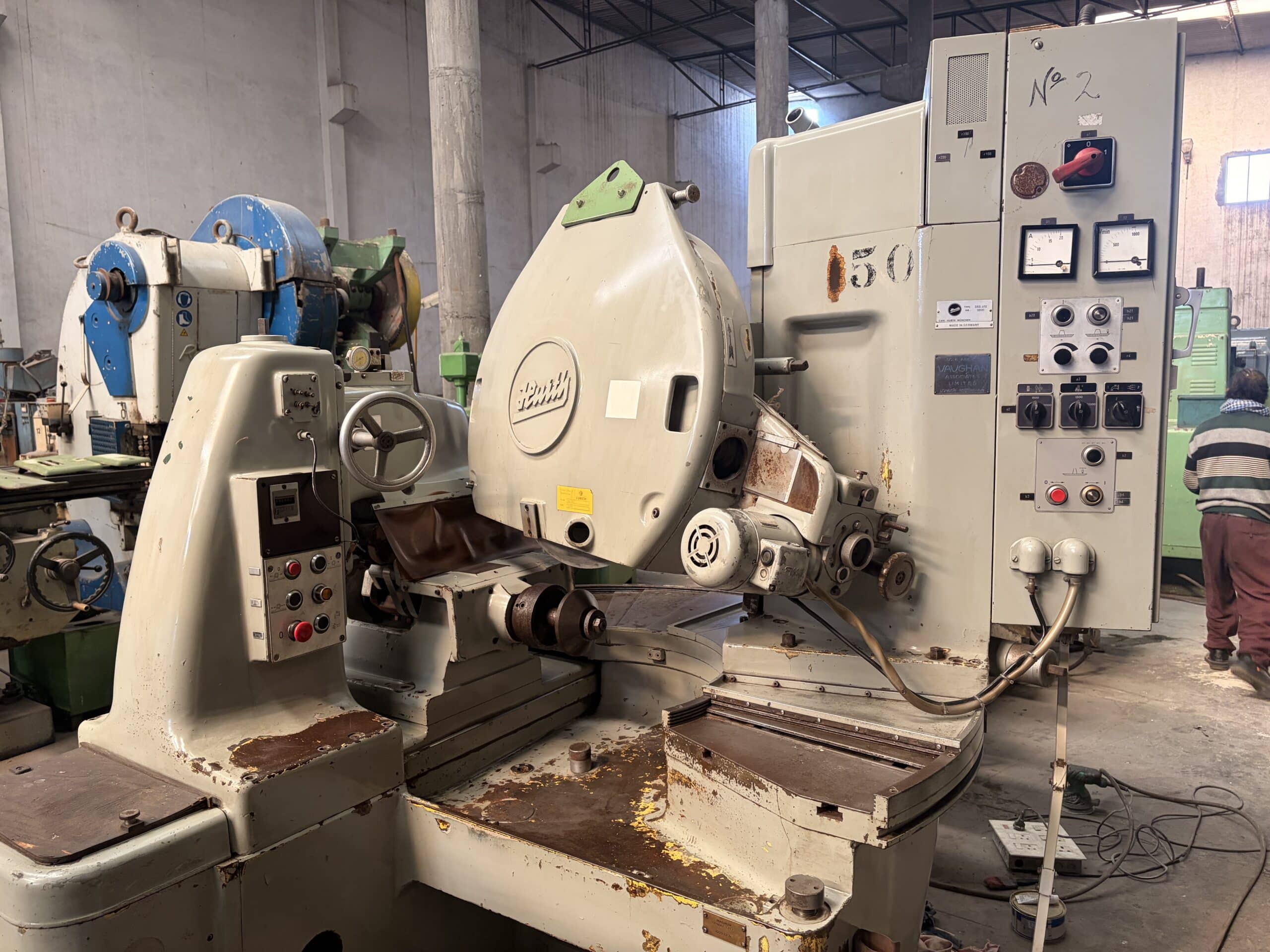

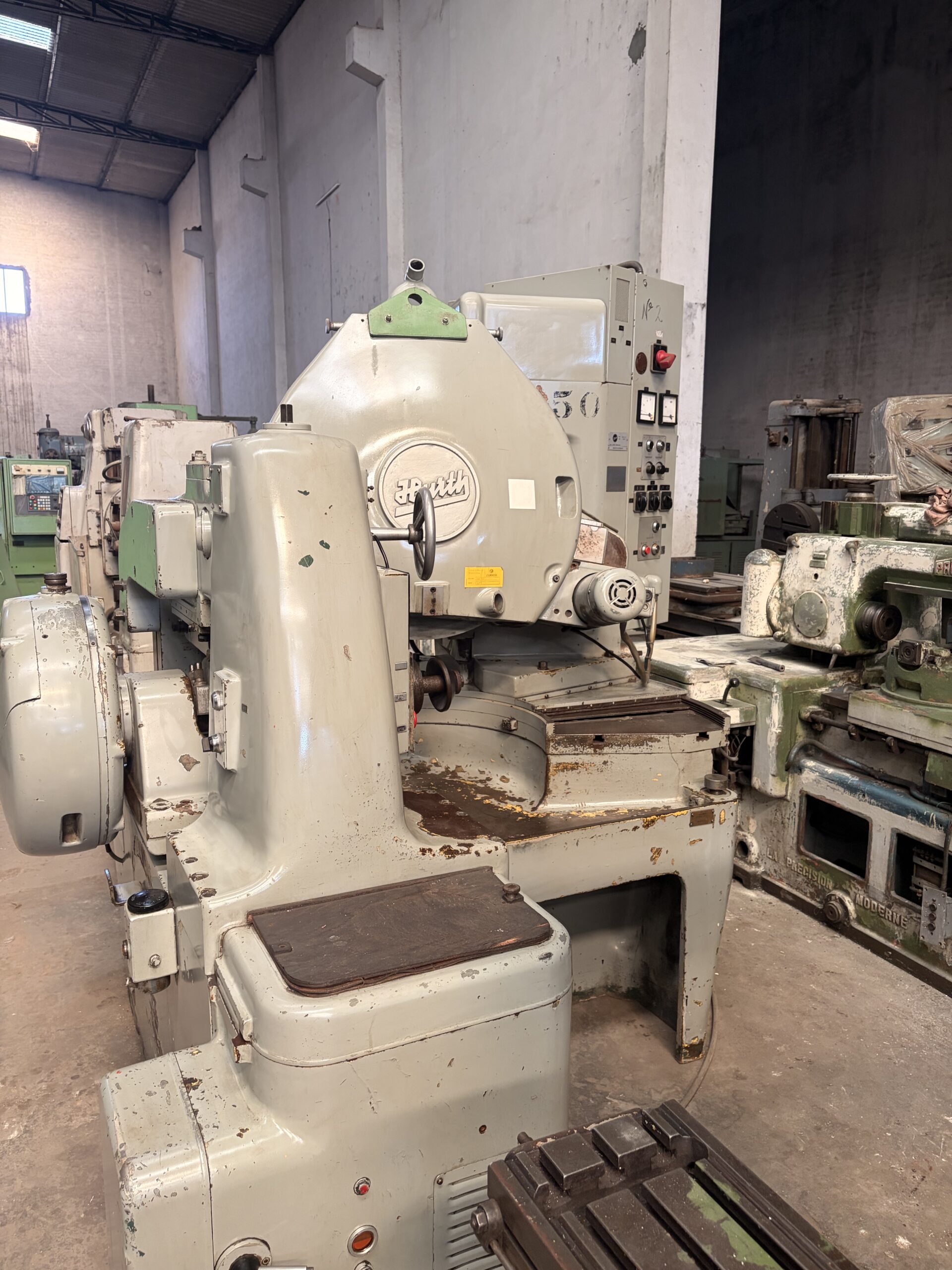

Hurth gear shaving cutter grinder and sharpening machine make in Germany, Excellent Working Condition with lot of accessories . Index Plates,Pitch Blocks, Roller Bands, Fingers,Spacers,Wheel Balancers etc. Orignal Product Manuals also available. Machine can be bought with accompanying HURTH SRS 401.
